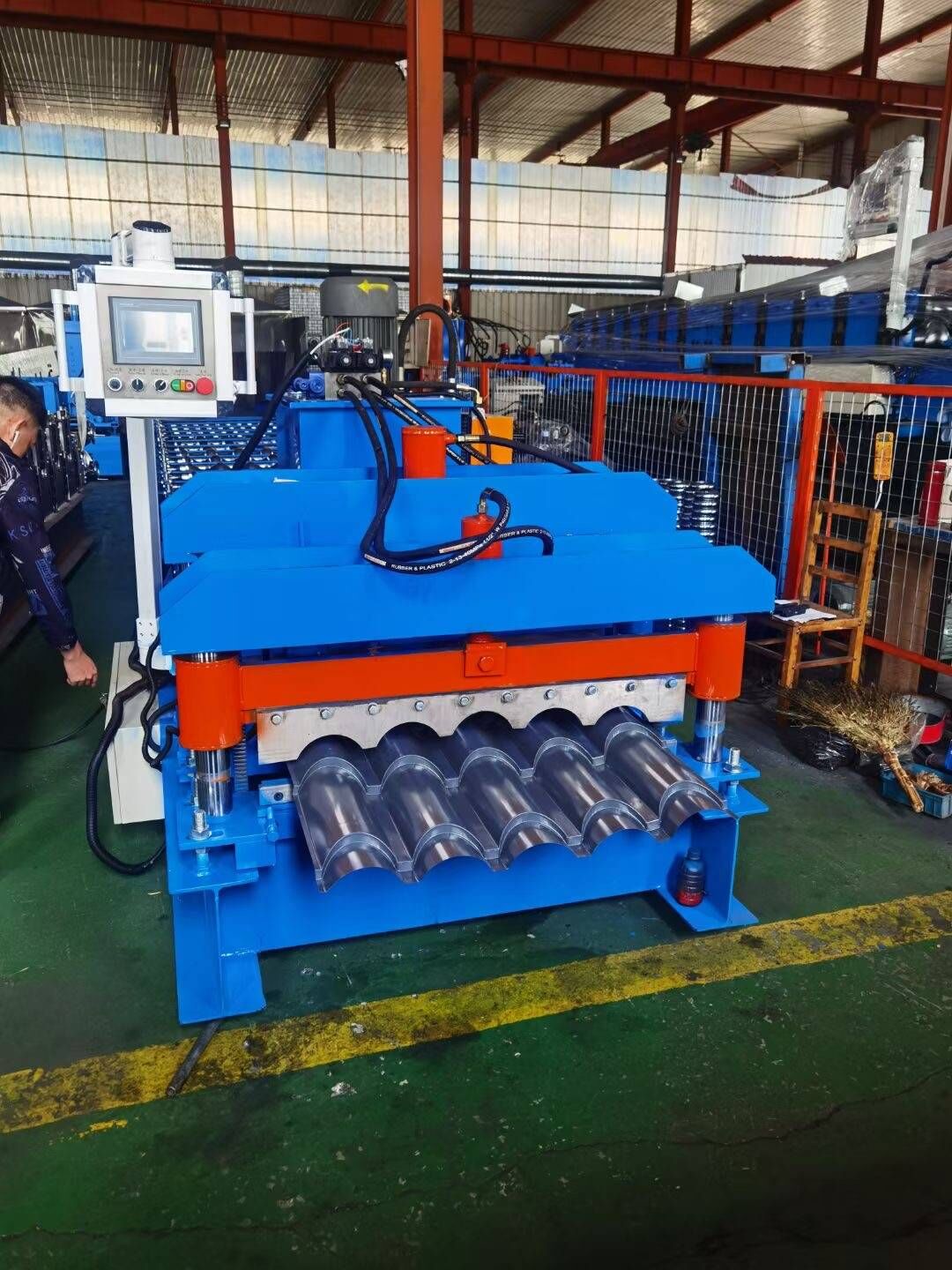

0.3-0.8mm Glazed Tile Roof Tile Roll Forming Machine With 17 Stations

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : SM-GT

Certification : CE,SGS,ISO

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 60 days after deposit

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Material Thickness : 0.4-0.7mm

Forming Stations : 18 roller stations

Shaft material : #45 steel with heat treatment

Raw material : PPGI/Galvanized Sheet

Power(w) : 7.5KW

Cutting blade material : cr12 with quenched treatment

Contact Now

0.3-0.8mm Thickness Glazed Tile Roof Tile Roll Forming Machine with 17 Stations

Glazed Tile Technical Parameter

(1) 5Tons manual un-coiler
Description There are different choices, please turn to the catalogue of un-coiler
(2) Entry bench & Manual Pre-shearing device
Function Smart cut control, to cut off the end of the final piece of sheet only
Shearing Thickness 0.4-0.8mm
(3) The general machine parameter
Suitable roll forming material Color steel sheet or galvanized steel
Feeding width 1220mm
Frame design Wall-plate-frame-design /New-stand-frame-design
Roll stages 18 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75 mm
Main motor power 7.5KW with reducer
Max. Line speed of roll former 3-4m/min
Hydraulic Stair-Drawing & Cutting Device There is one hydraulic press to make the stair according to requirement and hydraulic post cut for cut off
Hydraulic group power 7.5KW
Material of cutting blade Cr12, heat treatment
Electric Standard 380V /50Hz/3PH or as the customer's requirements
Machine Dimensions 9500mm×1800mm×160mm
Major Color of Machine Painted RAL 5015 (Blue) or as per customer's requirements
(4) PLC Control system
PLC Delta / Siemens brand
Touch Screen Delta / Siemens brand
Inverter Delta
Encoder Omron brand
(5) Product rack
Description un-powered, 2 units, 2 meters



Glazed Tile Main Components

S.N

Equipment name

Quantity
1.

5T passive un-coiler

1 set
2.

Main roll forming machine

1 set
3.

Hydraulic cutting

1 set
4.

Control system (including control box)

1 set
5.

Out tables

2 sets












Working Flow of Glazed Tile

Decoiler----Feeding---Roll forming---Cutting---Run out tables

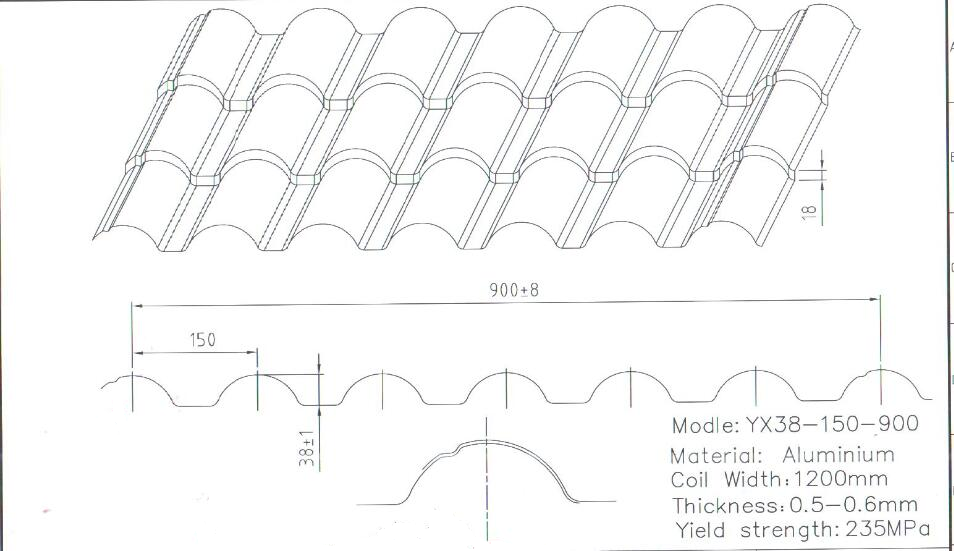

Profiles of Glazed Tile


0.3-0.8mm Glazed Tile Roof Tile Roll Forming Machine With 17 Stations

Application

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

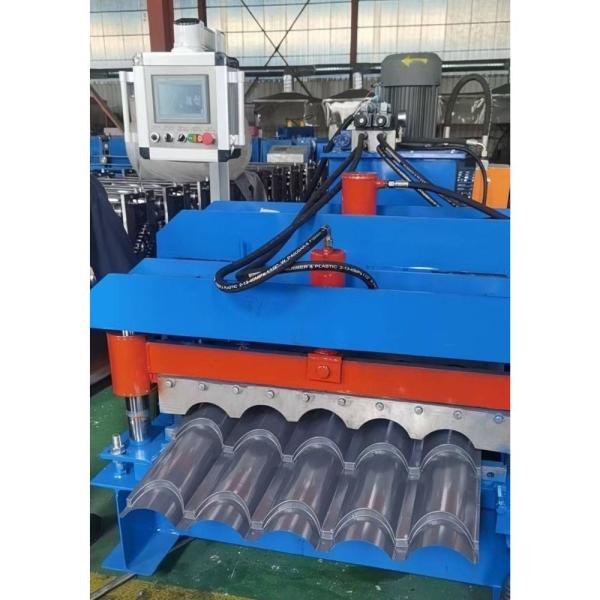

0.3-0.8mm Glazed Tile Roof Tile Roll Forming Machine With 17 Stations

0.3-0.8mm Glazed Tile Roof Tile Roll Forming Machine With 17 Stations
