36" Width Coverage Commercial R Panel PBR-Panel Metal Roof And Wall Panel Roll Forming Machine

Brand Name : Sussman

Model Number : SM-RP

Certification : CE ISO SGS

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 90 days after deposit

Packaging Details : Standard packing

Type : R Panel Roof Panel Roll Forming Machine

Hydraulic power : 7.5Kw

Roller statione : About 22 stations

Main Motor Power : 7.5kw

Way Of Drive : 1.2 inch single chain

Profile height : 1.25″ high ribs

Thickness : 26 and 24 gauge

Width : 36" Width Coverage

Contact Now

36" Width Coverage Commercial R Panel PBR-Panel Metal Roof And Wall Panel Roll Forming Machine

This roofing machine is to make R panel or PBR panel, which includes manual decoiler, also automatic decoiler for your optional, roll forming, hydaulic cutting to set length, reeiving table.

R-Panel/PBR-Panel is a low slope metal roof and wall panel with 1.25″ high ribs at 12″ apart which is our most popular panel in USA, used for commercial and agricultural.


Technical parameter:

Item

Description

Offered specification

1.1Rolling speed12-15m/min(not include cutting time)
1.2Rolling thickness0.3mm-0.8mm
1.3Raw materialColor painted coils, Aluminium, Zinc, Galvanized
1.4Main Motor7.5KW
1.6DimensionAbout 8000×1600×1200(mm)
1.7Effective width914mm
1.8Feeding Coil width1250mm
1.9Roller stations

About 20 stations

1.10Roller material45#forge steel, coated with chrome
1.11Shaft diameterΦ76mm
1.12TransmissionBy chain 1.2 inch
1.13Material of chain45# forged steel with frequency quenching, 12A
1.14Material of cuttingCr12Mov with quench HRC58-62°
1.15Tolerance10m+-1.5mm
1.16Hydraulic station4kw

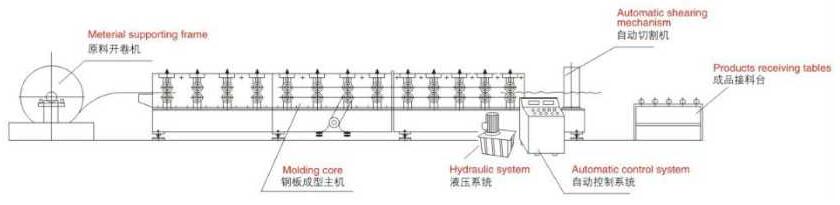

working flow

36" Width Coverage Commercial R Panel PBR-Panel Metal Roof And Wall Panel Roll Forming Machine

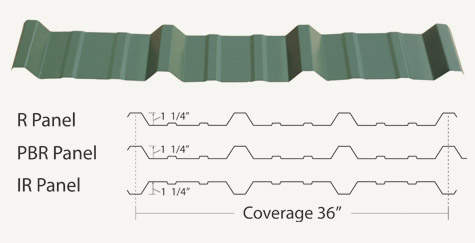

Profile Drawing

R Panel profile is ideal for a variety of architectural, agricultural, commercial and industrial applications.

PBR siding and roofing panels are a multi-use and an extremely durable alternative to other materials.
36" Width Coverage Commercial R Panel PBR-Panel Metal Roof And Wall Panel Roll Forming Machine

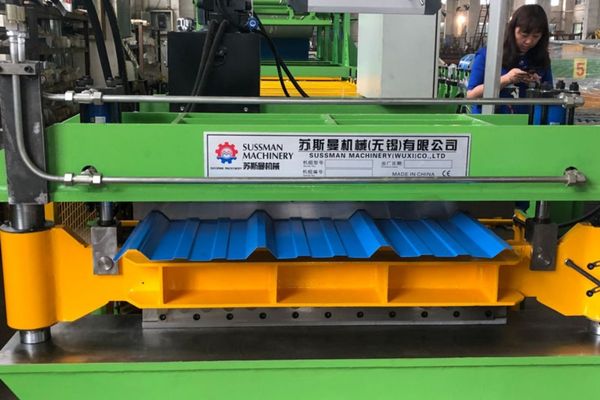

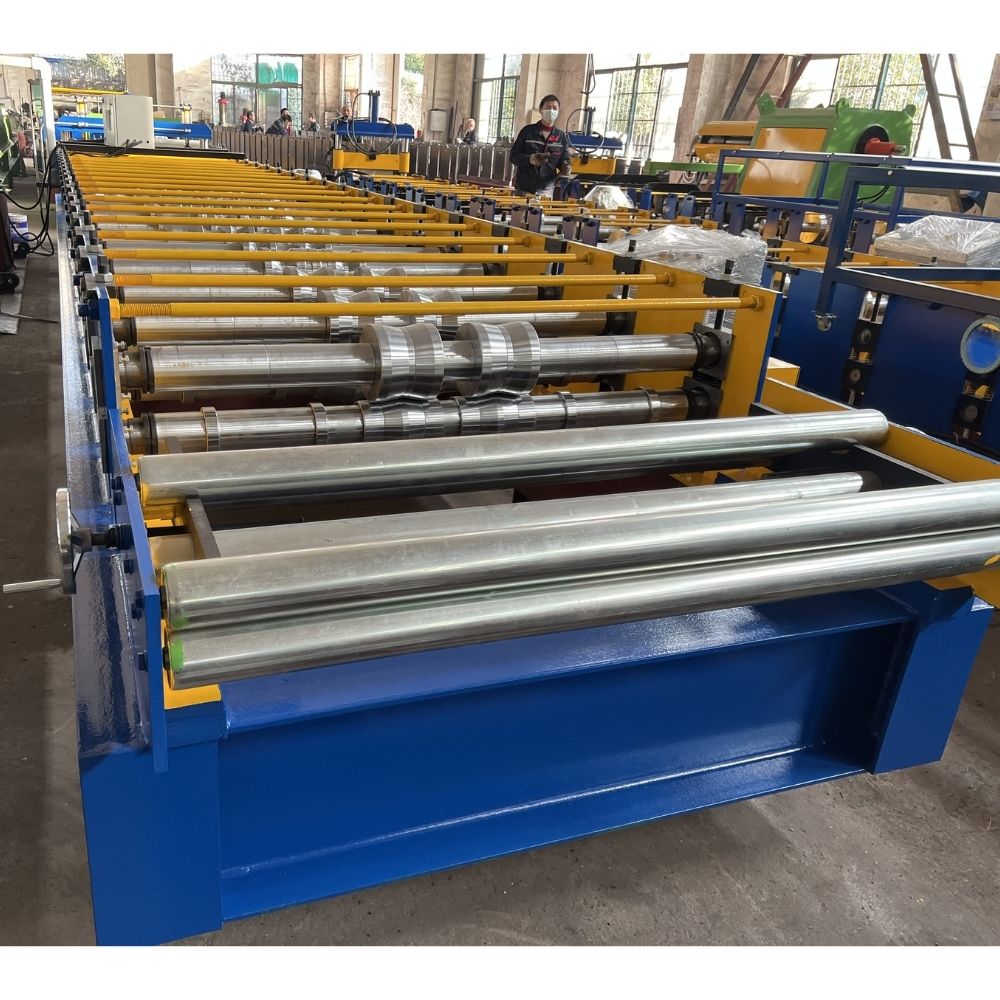

Machine Shows

36" Width Coverage Commercial R Panel PBR-Panel Metal Roof And Wall Panel Roll Forming Machine
36" Width Coverage Commercial R Panel PBR-Panel Metal Roof And Wall Panel Roll Forming Machine
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
