Feeding Width 1250mm Glazed Tile Roof Panel Making Machine Color Coated Metal Tile Roll Forming Machine
Glazed tile roll forming machine metal roofing tile making machine for building material machinery is used for making the color glazed tiles in batch.This machine adopted PLC control cabinet achieved full automatic easy operation produce.
The finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance.
The Versatile, Roman Profile, Eurotile Glazed Tile are Hot Sale in South Africa Area.
Glazed tile Technical Parameter
| Technical Parameter |
| Main Motor Power | 7.5kw |
| Sheet Thickness | 0.4-0.8mm |
| Sheet Width | 1000mm |
| Roller Stations | 16 stations |
| Way Of Drive | 1.2 inch single chain |
| Roller Material | 5# forge steel, coated with chrome |
| Shaft Material and DIA | ￠76mm, material is 45# forge steel |
| Hydraulic Station Power | 5.5kw |
| Size of the press parts | 2000*1800*1500mm |
Glazed tile Main Components
| S.N | Equipment name
| Quantity |
| 1. | Feeding and leveling device
| 1 set |
| 2. | Main roll forming machine
| 1 set |
| 3. | 5 tons passive decoiler | 1 set |
| 4. | Hydraulic station
| 1 set |
| 5. | Control system (including control box)
| 1 set |
| 6. | Spare parts
| 1 package |
Glazed tile working flow

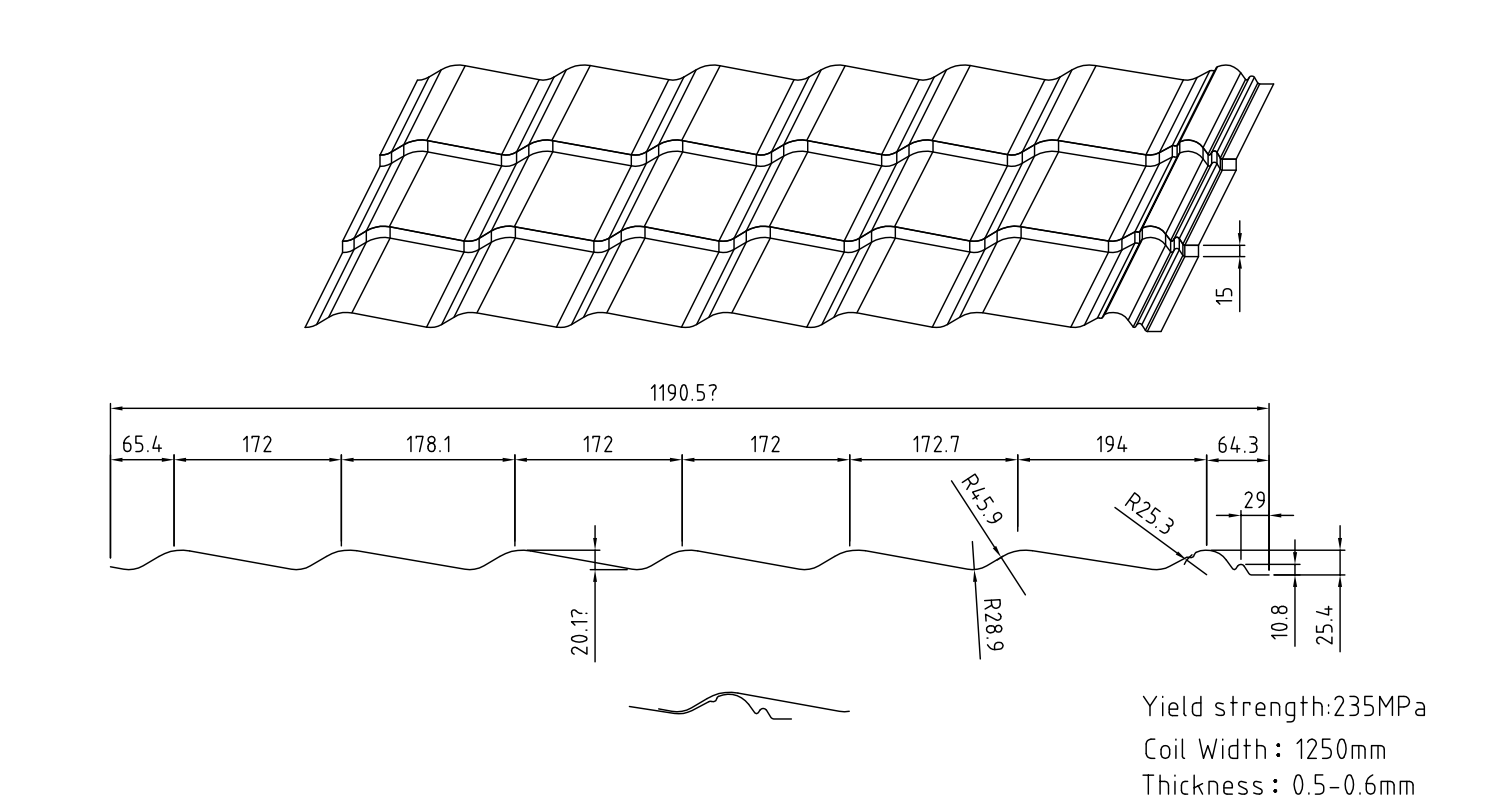

Profile Drawing
Finished Products:
Application
The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.
