3.0mm Thickness Deck Cable Tray Roll Forming Machine Scaffolding With Punching

3.0mm Thickness Scaffolding Deck Cable Tray Roll Forming Machine With Punching

Machine process

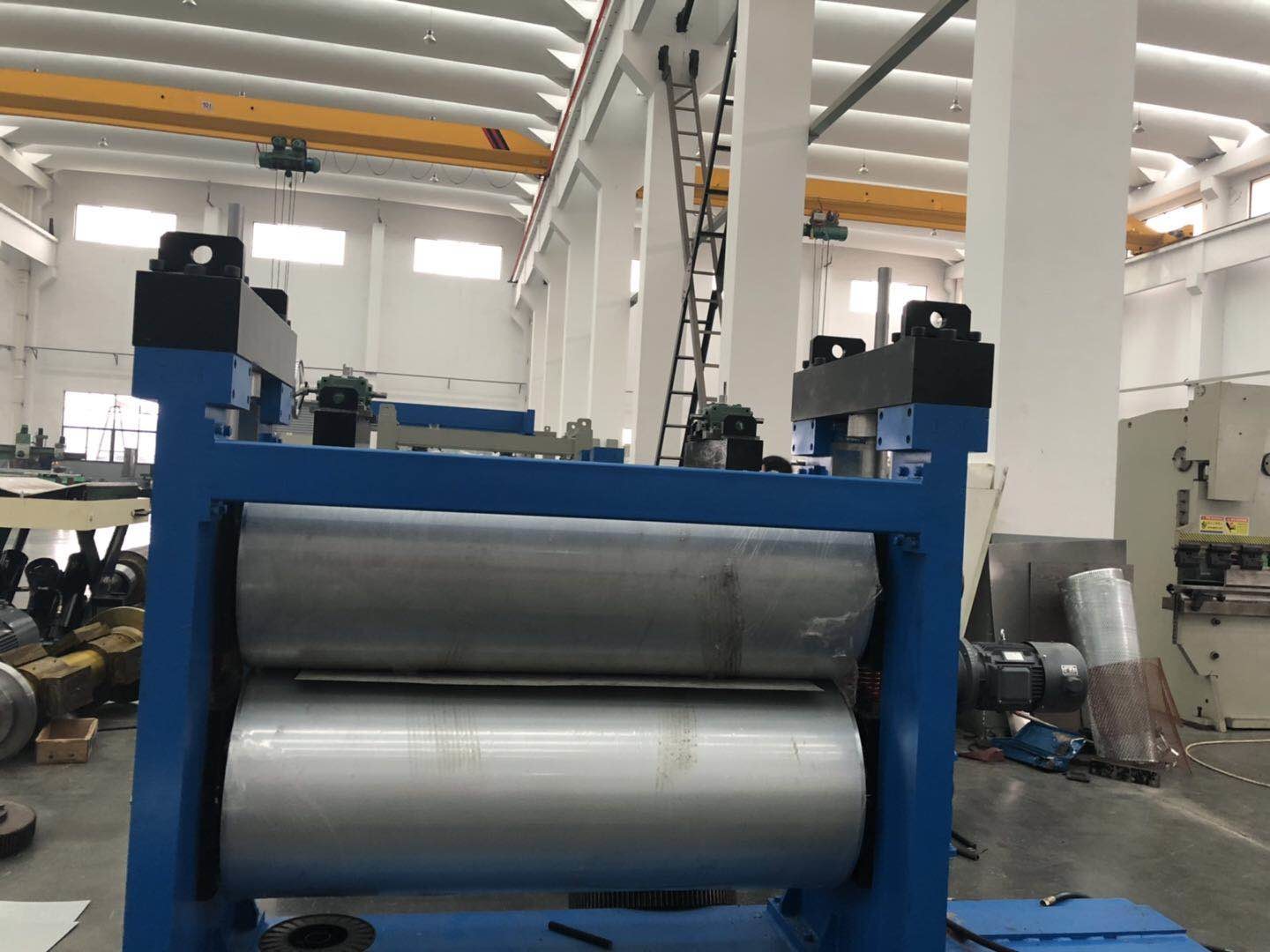

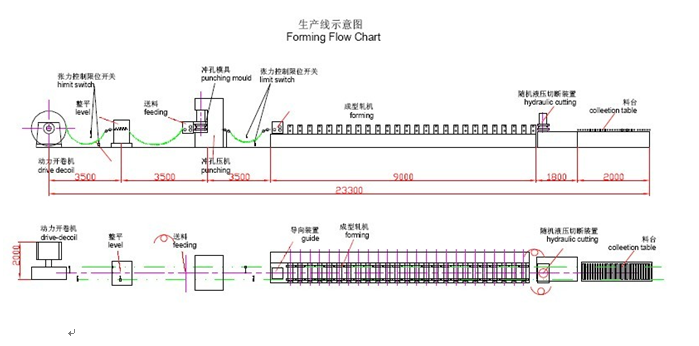

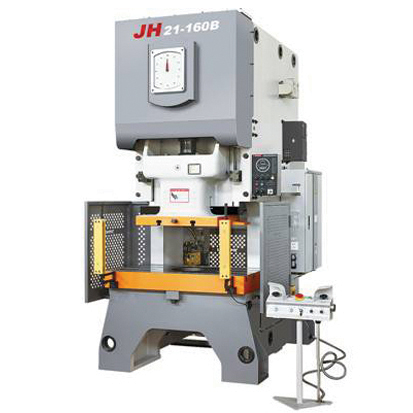

Decoiler- leveling—servofeeding---Punching Press--Roll forming-Cutting-Outtable

USED STEEL

Used sheet steel materials for cable tray product are:

DX51 EN10142(1991) – thickness: 1-2mm

Profiles

Technique data

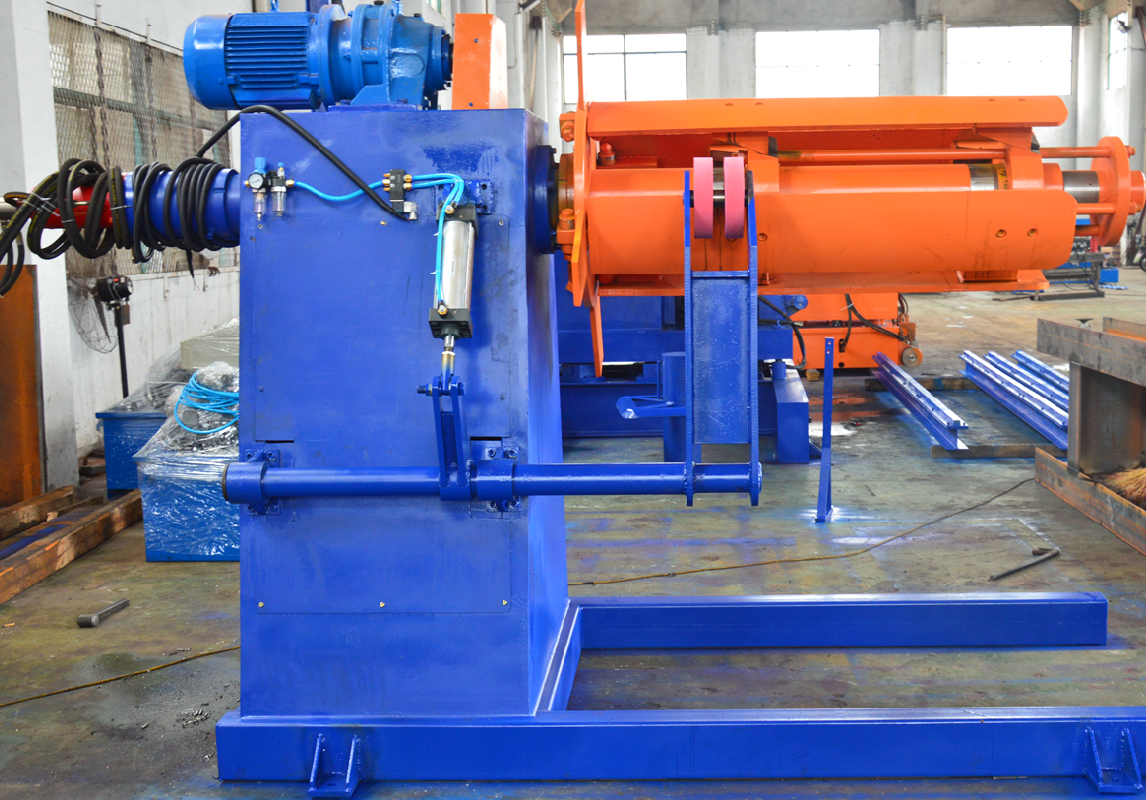

• 5 ton hydraulic De-coiler

Diameter: 508-610mm Hydraulic expansion. Pictures for reference

Expansion: hydraulic decoiler

Capacity: 5000kg per mandrel

Max Coil Width: 1250mm

Drag tension brake with variable brake tension adjustment valve

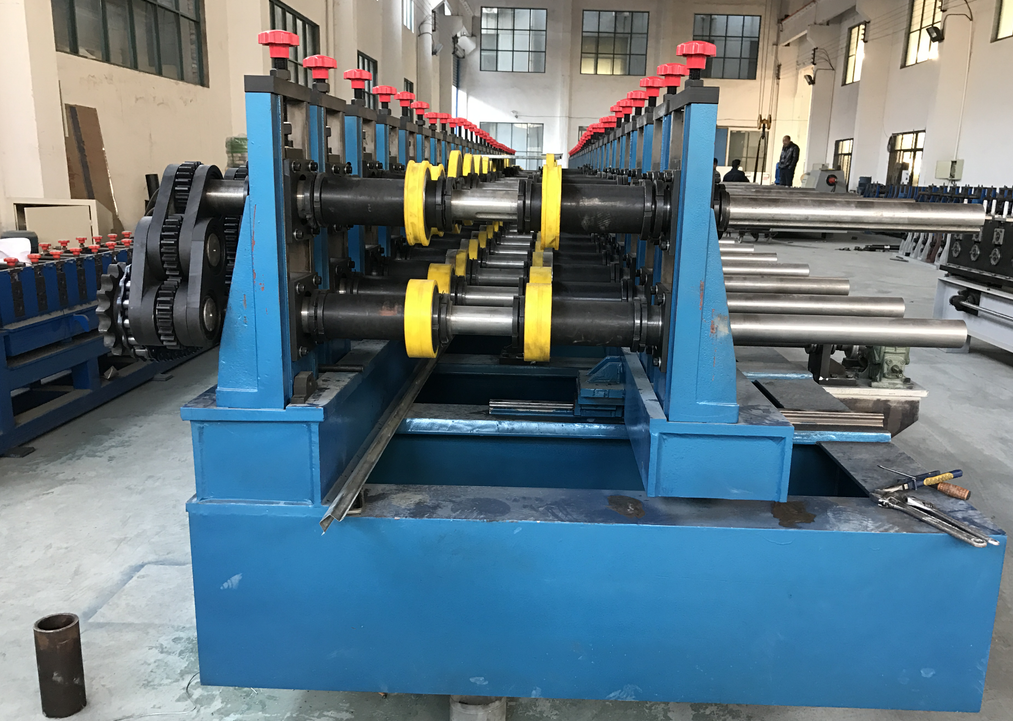

Main Roll forming machine technique data

. Suitable Plate Material:

• Material– thickness:1-2mm

Raw material: Galvanized steel and black steel sheets

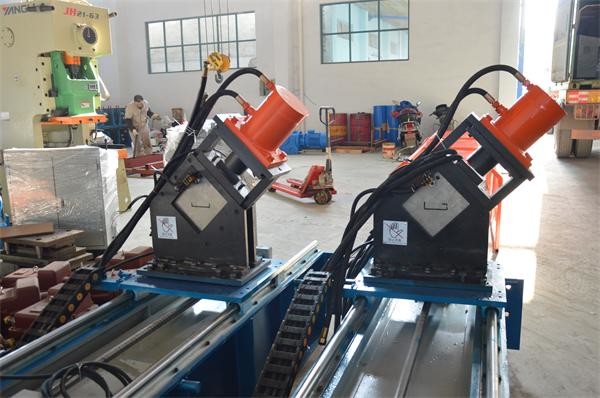

Cutting:

1 The cutter blade material: Cr12mov HRC58-62 degree

2 Cutting after forming: Cut the sheet after roll forming to required length

3 Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

4 Material of blade: CR12with heat treatment

5 Length measuring: Automatic length measuring

6 Tolerance of length: 6m+/- 1.5mm

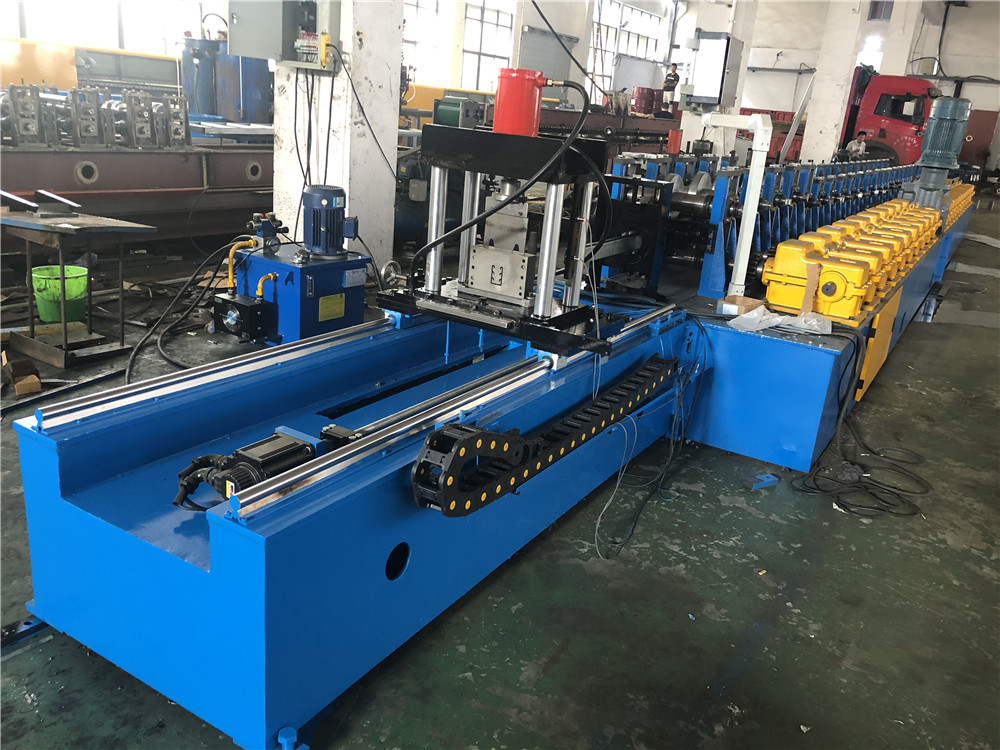

Servo feeding can accurately control the punching distance, controlled by PLC, feeding tolerance can be +-0.05mm, servo motor can control the speed, and can accept input signals, quick response, and good performance, touch screen can display speed, length and quantity, can be controlled by manual and automatic mode.

The cable tray is divided into trough type, bridge type, ladder form, grid type and other structures, which is composed of support, bracket and installation accessories. Bridges in buildings can be erected independently or laid on various buildings (structures) and pipe gallery supports. It has the characteristics of simple structure, beautiful appearance, flexible configuration and convenient maintenance

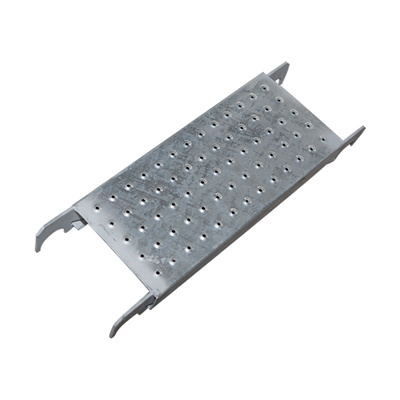

The main function of steel plank is providing the studio for the workers. There are anti-sliding hole and drainage hole on it.
