c channel 7000w Power C Z Purlin Roll Forming Machine 3600kg Passive Decoiler

Name: c channel 7000w Power C Z Purlin Roll Forming Machine 3600kg Passive Decoiler
Brand: Sussman
Price: 1 USD

c channel 7000w Power C Z Purlin Roll Forming Machine 3600kg Passive Decoiler Manufactures

Brand Name : Sussman

Model Number : SS-CZPI

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10 sets per month

Delivery Time : 55 - 65 days

Packaging Details : Standard packing

Forming speed : 12-20m/min

Roller station : 16 - 18 stations

Main motor power : 11Kw

Hydraulic station power : 7.5Kw

Contact Now

7.Kw Hydraulic Power C Z Purlin Roll Forming Machine 3.5 Ton Passive Decoiler

Technical Parameter

1. Steel Sheet Thickness: 1.-3.0mm (depend on requirement )

2. Hydraulic power: 7.Kw

3. Transmission way: double chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton passive decoiler

6. Forming Speed: 10-20m/min

7. Roller Groups: about18 stations main roller

8. Roller Material: GCr15 grade steel

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw

Main Components

1. 3 ton passive decoiler-------------------------------- 1Set

2. Main roll forming machine---------------------------- 1Set

2. Hydraulic station----------------------------------------- 1Set

3. Cutting device-------------------------------------------- 1Set

4. Finished products tabel--------------------------------- 2Set

5. PLC control system-------------------------------------- 1Set

6. Spare parts------------------------------------------------ 1Set

Advantages

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Working Flow

Decoiler ---- Feeding --- Levelling--- Punching --- Cutting ---Roll forming--- Run out table

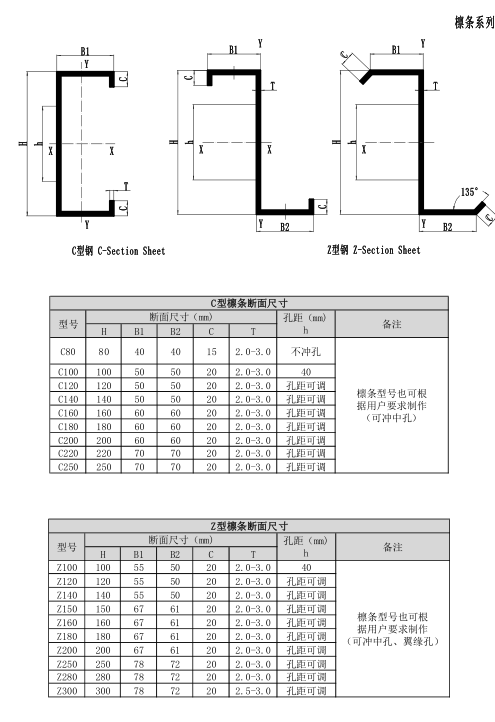

Profiles of CZ Purlin Interchangeable Roll Forming Machine

c channel 7000w Power C Z Purlin Roll Forming Machine 3600kg Passive Decoiler

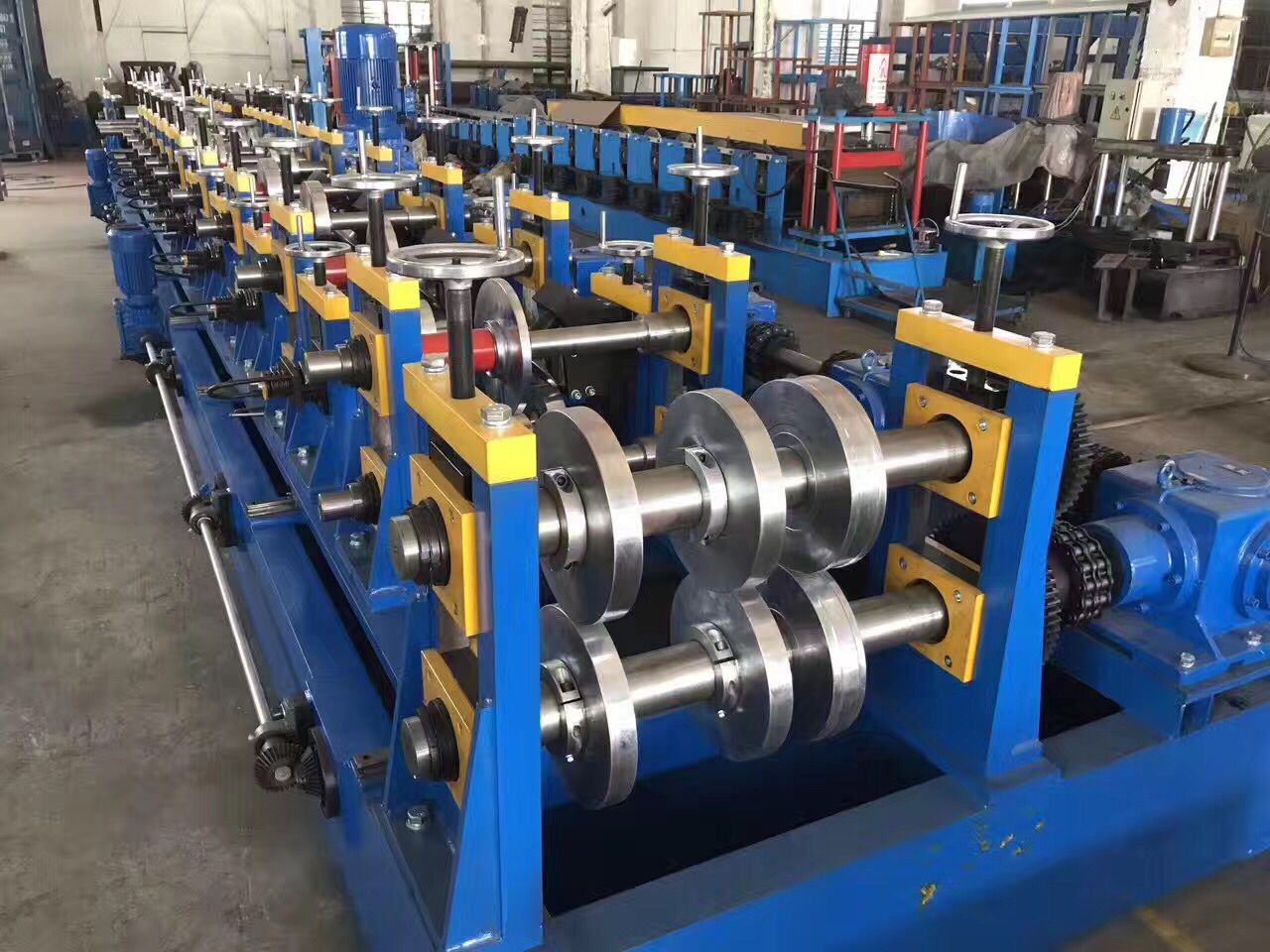

Machine pictures

c channel 7000w Power C Z Purlin Roll Forming Machine 3600kg Passive Decoiler

Loading Pics

c channel 7000w Power C Z Purlin Roll Forming Machine 3600kg Passive Decoiler

Product Tags:

c purlin roll forming machine

z purlin roll forming machine

c channel 7000w Power C Z Purlin Roll Forming Machine 3600kg Passive Decoiler Images
