Automatical C Z Purlin Roll forming Machine With Servo Feeding and Punching

Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching

1. Technical Parameter

• Products specification: C80-300. Thickness: 2-3mm. Yield strength: 250Mpa max.
• Running speed: 0-12m/min.
• Main shaft material: 45# steel, Q&T treatment
• Main axis diameter: ￠75mm
• Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity: HRC58-62.
• Roller groups: 15 groups main rollers
• Levelling roller: 7 rollers levelling device
• Main motor power: 11KW;
• Hydraulic station motor power: 5.5KW
• Punching station: 4 punch device
• Electrical control system: Whole line adopted PLC control, Panasonic PLC.
• Cutting method: Hydraulic powered, automatically cut to length after roll forming
• Cutting mold material: Cr12 quenching treatment
• Uncoiling: by 3ton passive uncoiler
• Machine dimension: 11.5m L X 1.2 m W X 1.0 m H
• Machine weight: about 8 tons.

2. Machine List

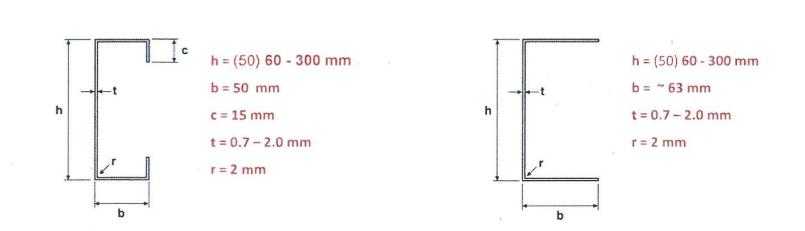

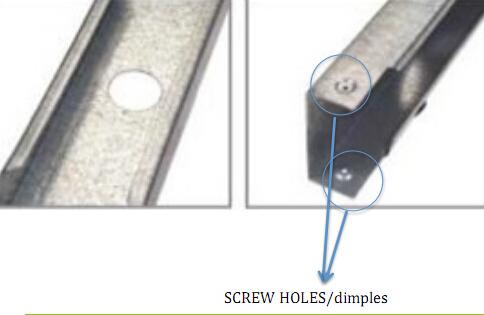

3. Profile Drawing

4. Processing Flow Chart

Uncoiling –– infeed guiding –– levelling–– servo punching–– cutting to length rollforming –– out put product

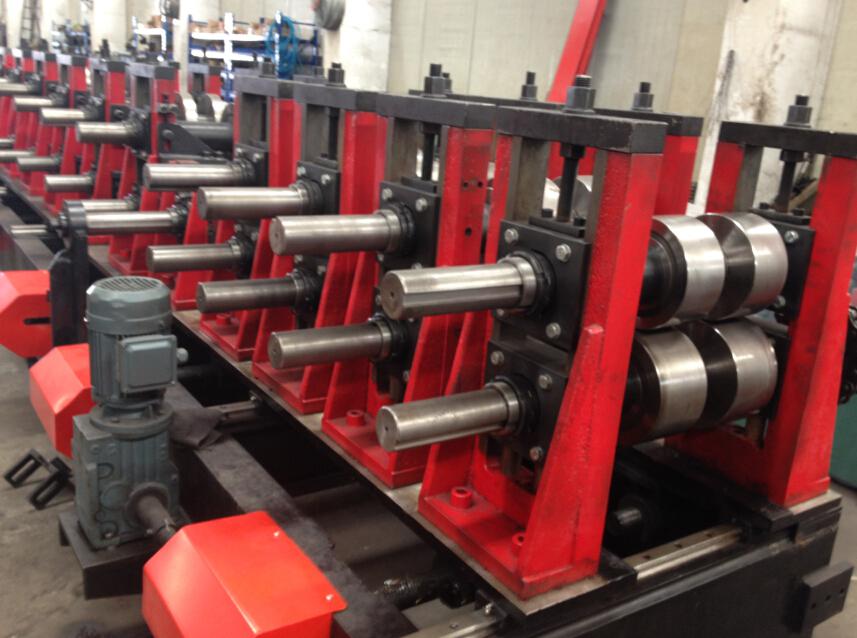

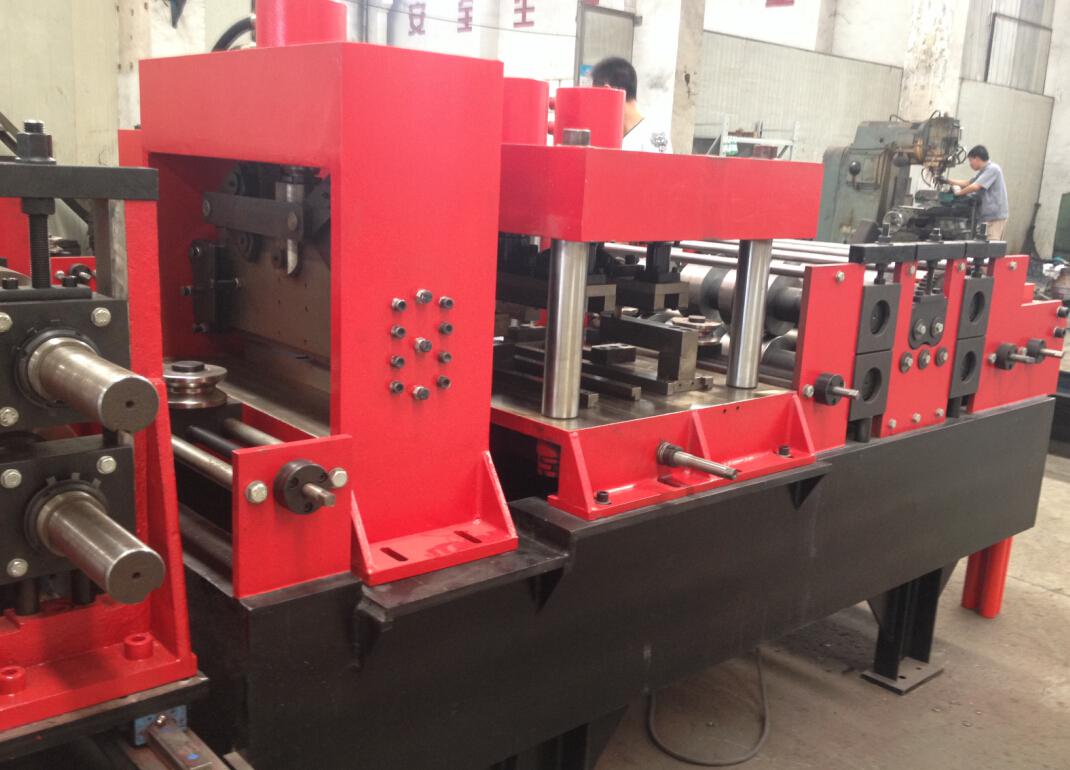

5. Machine Photo

6. Loading Pics

7. Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
