Cable tray roll forming machine
Main Specifications
- Cable tray width: 100-600mm
- Working Speed: 0-10m / min
- Forming stations: according to different profiles,
- Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome, about 20 stations
- Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining
- Main Power with reducer: 15KW WH Chinese Famous
- Cutting: Hydraulic Cutting Cr12mov
- Material of Cutting Knife: Cr12Mov, Quench HRC58-62
- Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
- The whole machine is controlled by industry computer-PLC.
- PLC--Panasonic, Japan
- Touch Screen—Panasonic, Japan
- Drive way: Chain drive, with 1.5 inch 20A Chain
Machine Component List
| 5 Ton Hydraulic De-coiler | 1 set |
| Levelling device | 1 set |
| Servo Feeding device | 1 set |
| Press Machine JH-200 | 1 set |
| Main Roll Forming Machine | 1 set |
| PLC Control box | 1 unit |
| Hydraulic Station | 1 unit |
| Cutting device | 1 unit |
| Punching mould | 1 unit |
| Out table | 2 units |

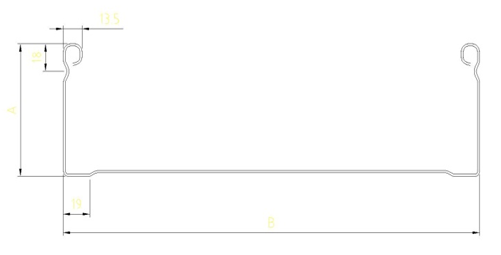

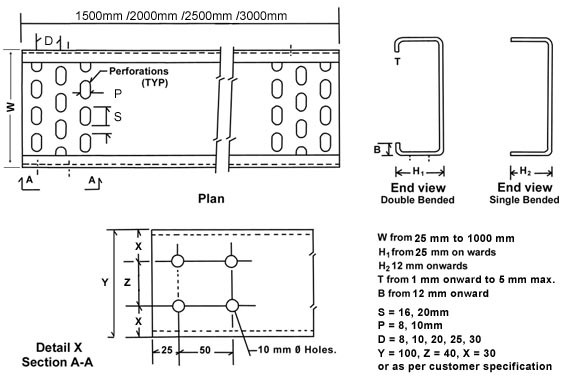

Cable Tray Profile Drawings

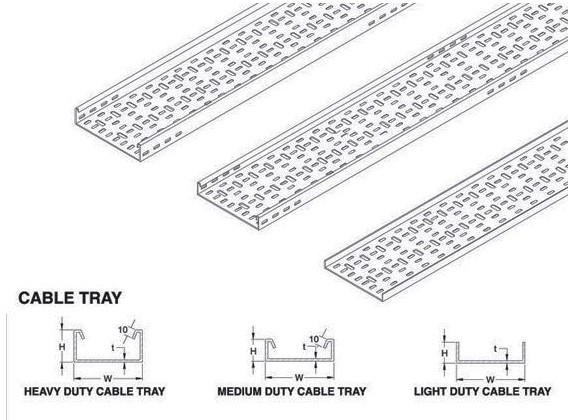

Cable Tray Product Photo
Working Flow
Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table

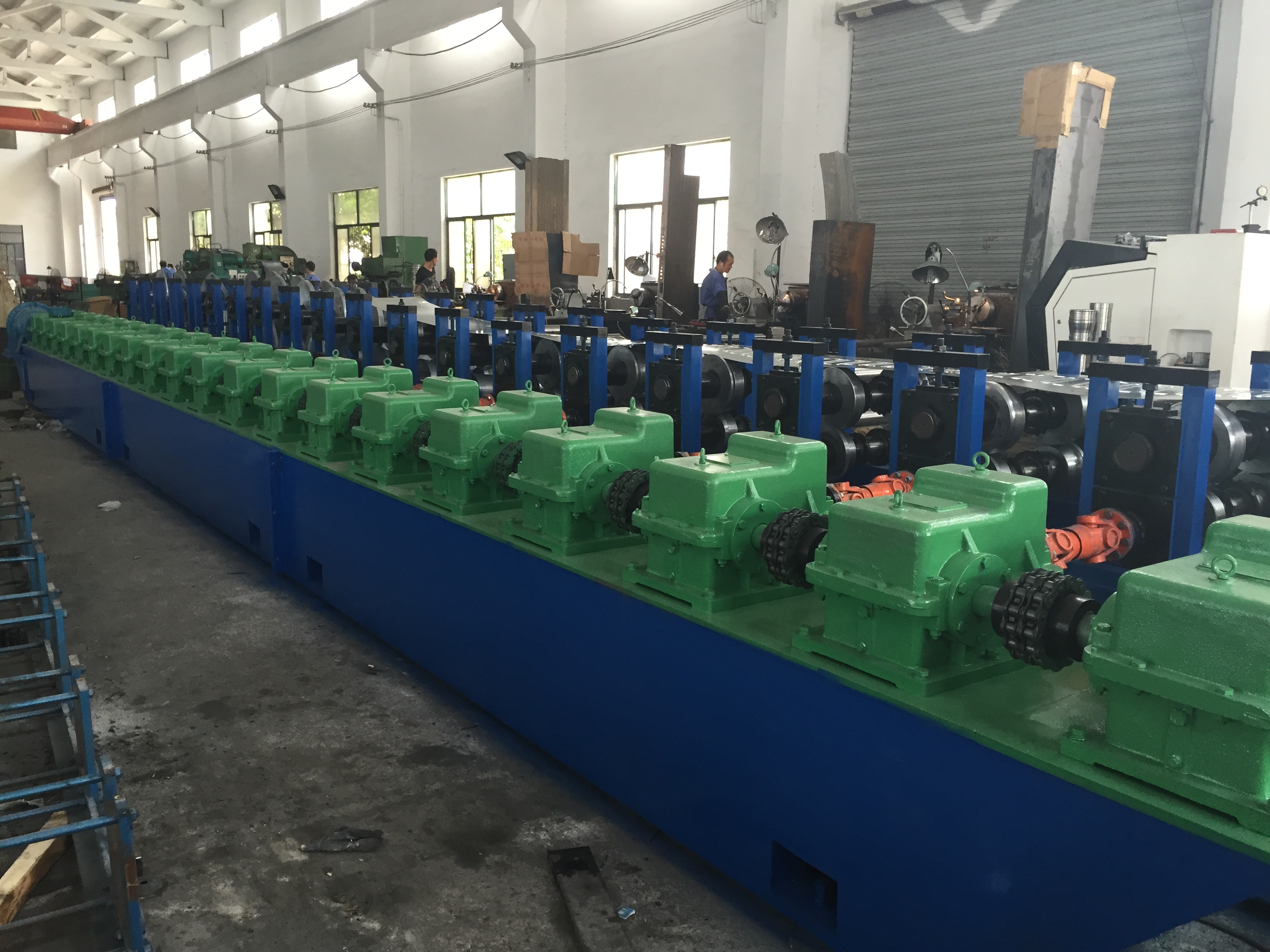

Machine Photo
Application
In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.
