Name: PLC Panasonic Door Frame Roll Forming Machine 15 Meters Min Electric Parts Schneider
Brand: SUSSMAN
Price: 1 USD

Brand Name : SUSSMAN

Model Number : RF-DF

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Payment Terms : LC, TT

Supply Ability : 20 sets/months

Delivery Time : 50 days after deposit

Packaging Details : Film and steel

material thickness : 1.5-2mm

forming speed : 12-15m/min

Roller stations : 18 stations

Roller material : GCr15

shaft material : 45# steel

Contact Now

Professional PLC Panasonic Door Frame Roll Forming Machine Electric Parts Schneider

1. Technical Parameter

2. Working Flow

PLC Panasonic Door Frame Roll Forming Machine 15 Meters / Min Electric Parts Schneider

3. Machine Components

S.N	Equipment name	Quantity
1	3T passive un-coiler	1 set
2	Leveling device	1 set
	Hydraulic punch for the notches	5 sets
3	Main roll forming machine	1 set
4	Cutting holder	1 set
5	Cutting blades	1 set
6	Punching moulds	1 set
7	Hydraulic station	1 set
8	Control system ( including control box)	1 set
9	Out tables	2 units
10	Spare parts	1 package

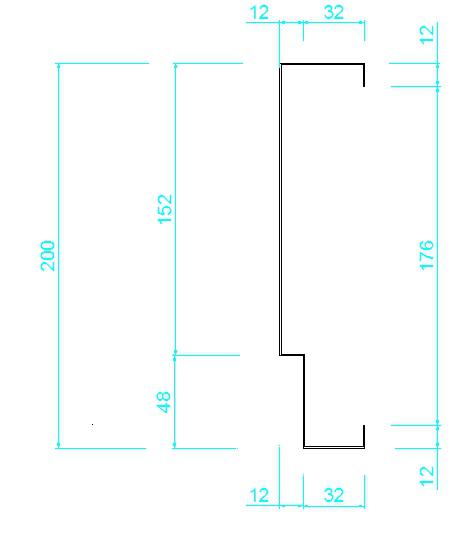

4. Profile Drawing

PLC Panasonic Door Frame Roll Forming Machine 15 Meters / Min Electric Parts Schneider

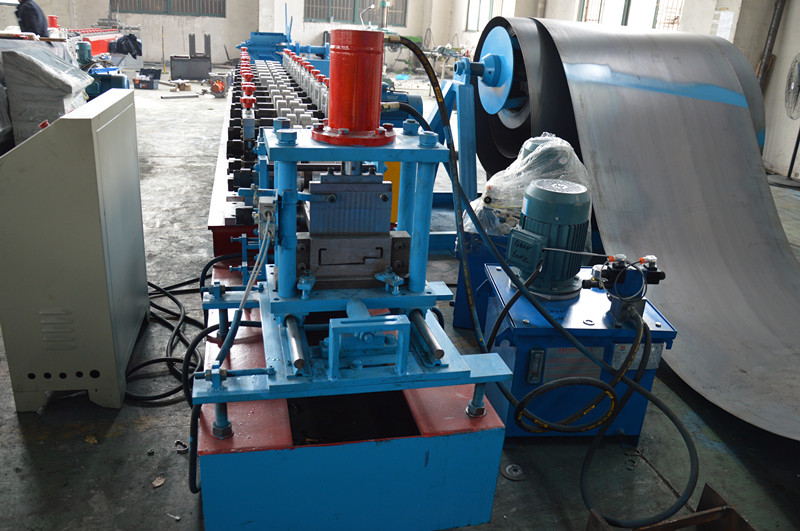

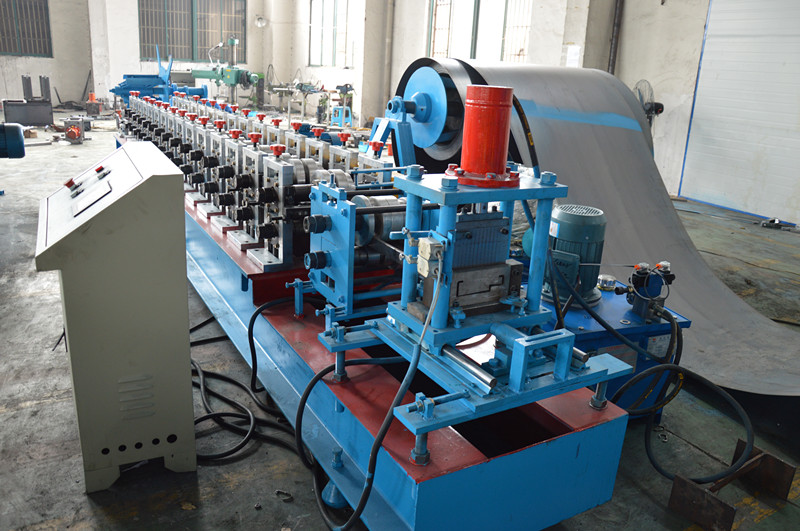

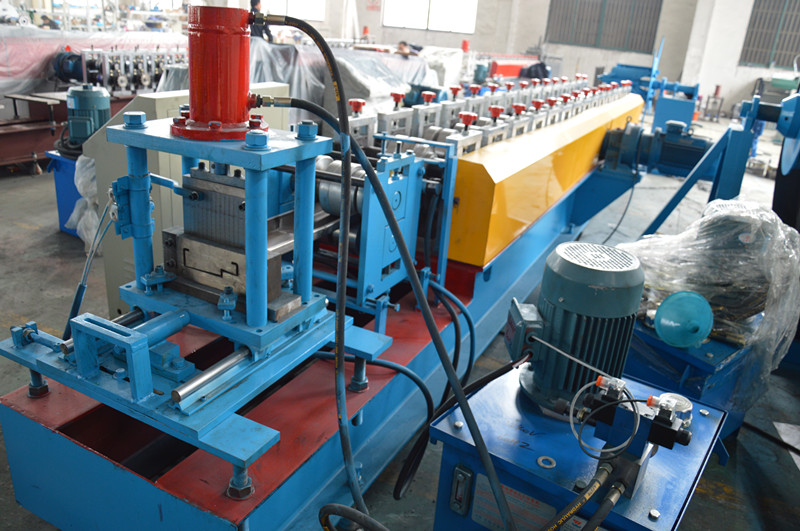

5. Machine Photo

PLC Panasonic Door Frame Roll Forming Machine 15 Meters / Min Electric Parts Schneider
