1.5mm Galvanized Steel Cold Rolling Forming Machine with Panasonic Touch Screen
1. Machine Components
| No | Name | Qty |
| 1 | 3 Ton passive decoiler | 1 set |
| 2 | Roller leveller | 1 set |
| 3 | Servo feeding device | 1 set |
| 4 | Punching press machine | 1 set |
| 5 | Punching moulds | 1 set |
| 6 | roll forming machine | 6 sets |
| 7 | PLC system | 1 set |
| 8 | Cutting device | 1 set |
| 9 | Outer tables 3 meters | 2 sets |
| 10 | Spare parts | 1 set |
2. Technical Parameter
- Suitable Plate Material: Galvanized steel and black steel sheets, thickness:1.2mm, Width from 100mm-600mm, height 50-100mm
- Working Speed: 10meters / min
- Forming stations: about 20 stations
- Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
- Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining
- Driven system: Chain Driven 1.5 inches 20A
- Main Power with reducer: 15KW WH Chinese Famous
- Cutting: Hydraulic Cutting Cr12mov
- Material of Cutting Knife: Cr12Mov, Quench HRC58-62
- Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
- The whole machine is controlled by industry computer-PLC.
- PLC--Mitsubishi, Japan
- Touch Screen—Panasonic, Japan
- Encoder--Omron, Japan
- Electric parts--Schneider
- Adjust the height by the motors and the rails, controlled by the PLC
3. Working Flow
Un-coiler ------ Levelling-----Feeding-----Punching --- Roll forming ----- PLC control --- Hydraulic Cutting---- Run Out Table

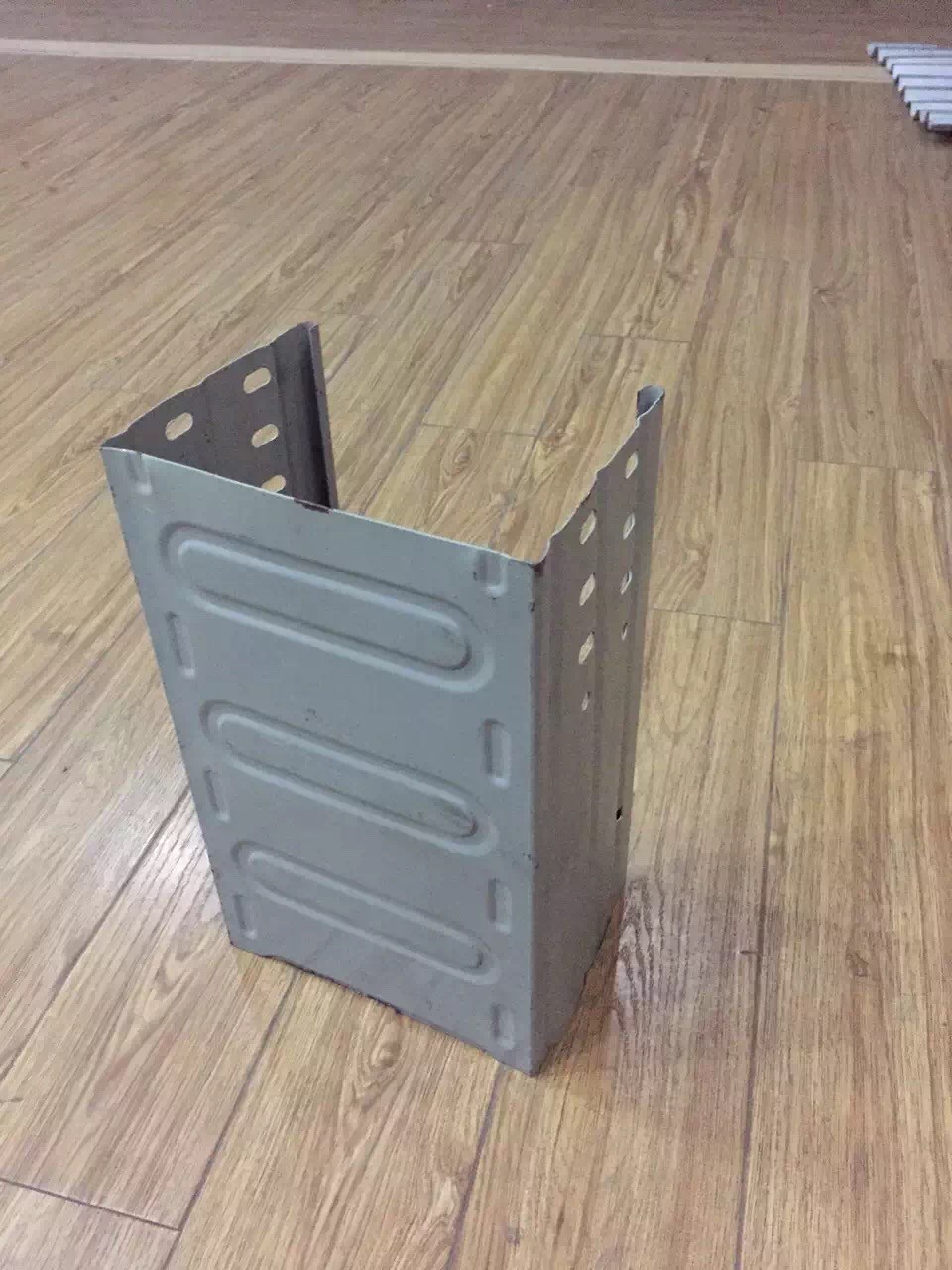

4. Profile

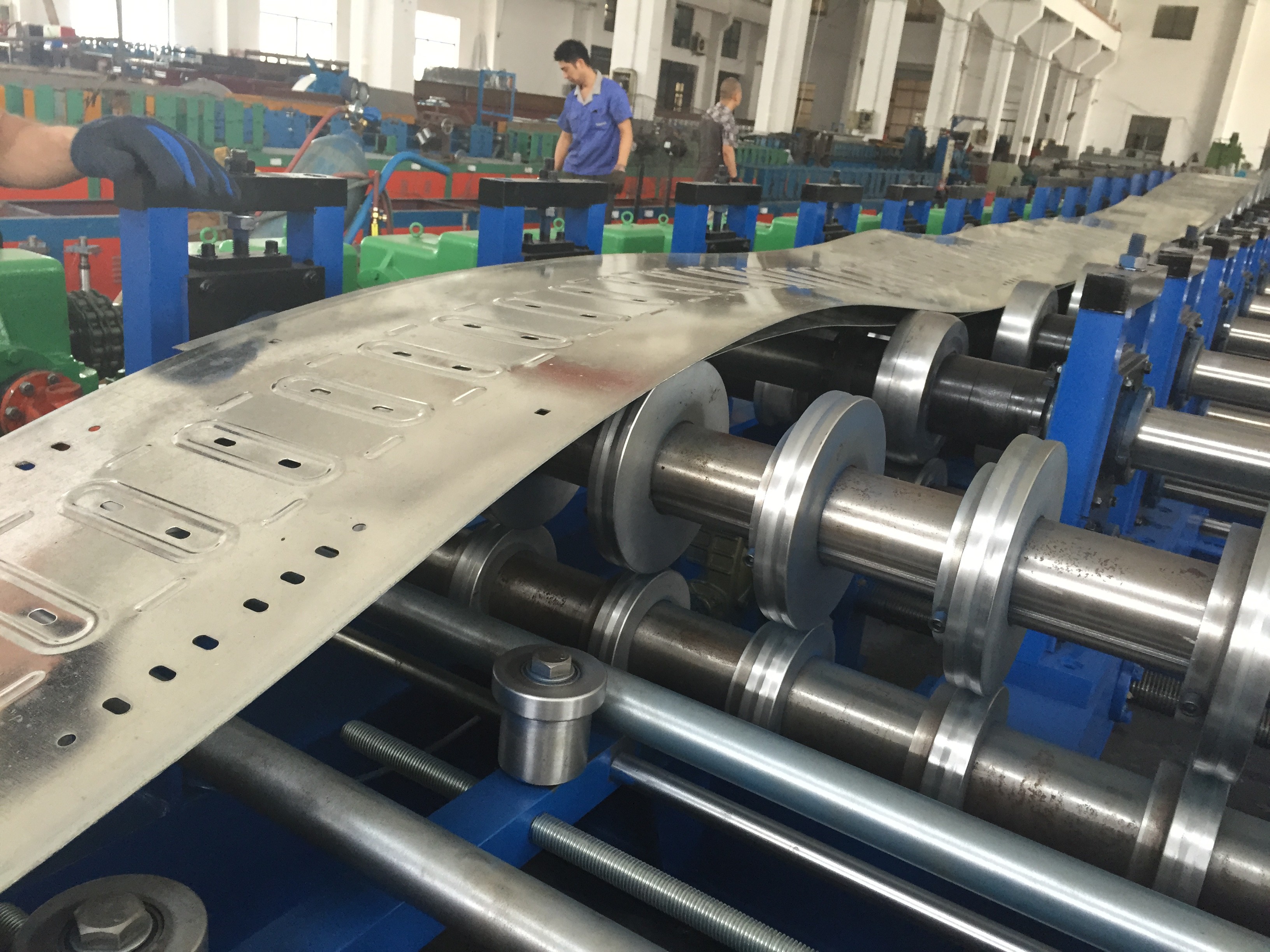

4. Machine Photo
5.Our After-Sales Service Commitments
Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipment:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.
3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;
4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
6.FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
