13 Stations Ceiling Batten Omega Type Roll Forming Machine Material Thickness 0.48-0.55mm

Name: 13 Stations Ceiling Batten Omega Type Roll Forming Machine Material Thickness 048055mm
Brand: Sussman
Price: 1 USD

13 Stations Ceiling Batten Omega Type Roll Forming Machine Material Thickness 0.48-0.55mm Manufactures

Brand Name : Sussman

Model Number : SM-CM

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C, D/P, Western Union, MoneyGram

Supply Ability : 10 sets per months

Delivery Time : 45-55 days after deposit

Packaging Details : Film and Steel

Type : Omega Roll Forming Machine

Roller stations : about 13 stations

Machine size : 6500mm x 600mm x 1000mm

Color : Blue or as client's requirement

De-coiler : 3 Ton

Working speed : 8-12m/min

Contact Now

13 Stations Ceiling Batten Roll Forming Machine Material Thickness 0.48-0.55mm

Technical Parameter

Item NO	Description	Offered specification
1.0	Roll forming machine	Ceiling batten
1.1	Rolling speed	15m/min(not include cutting time)
1.2	Rolling thickness	0.48 mm to 0.55mm
1.3	Raw material	G550 Galvanized coils
1.4	Main motor	5.5kw
1.5	PLC	Mitsubishi Brand
1.6	dimension	About 5500×600×1000(mm)
1.7	Effective width	66mm
1.18	Voltage	380V, 50HZ, 3phase
1.9	Roller stations	About 13 stations
1.10	Roller material	#45 Steel
1.11	Shaft diameter	Φ50mm ,material is 45# forge steel
1.12	Transmission	By chain One inch
1.13	Material of chain	45# forged steel with frequency quenching
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Tolerance	6m+-1.5mm

Working Flow

Decoiling - Feeding with guide - Roll forming - Cutting - Products Output

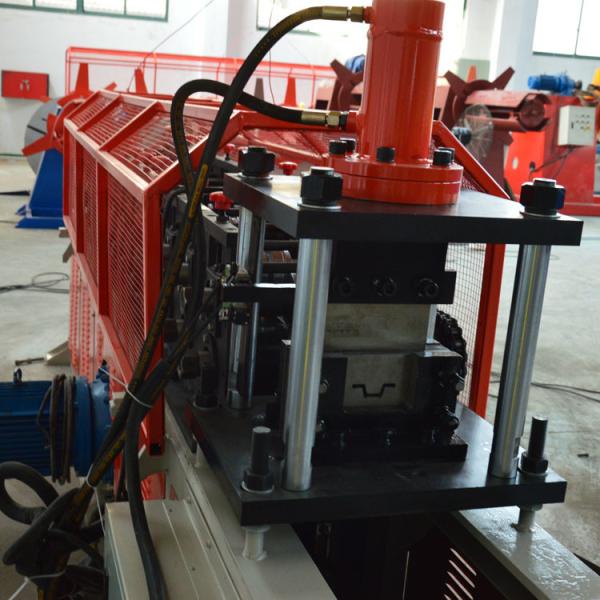

Machine profile

13 Stations Ceiling Batten Omega Type Roll Forming Machine Material Thickness 0.48-0.55mm

Advantage

1.Professional Technical Team
The company has professional teams which are respectively responsible for product development, mechanical assembly and precision parts processing.
2.Leading Technology
We adopt Europe advanced automation control concept so as to reduce the human power .
3.Strict Control
Our products follow the principle of production self-inspection, storage inspection and dispatch inspection.

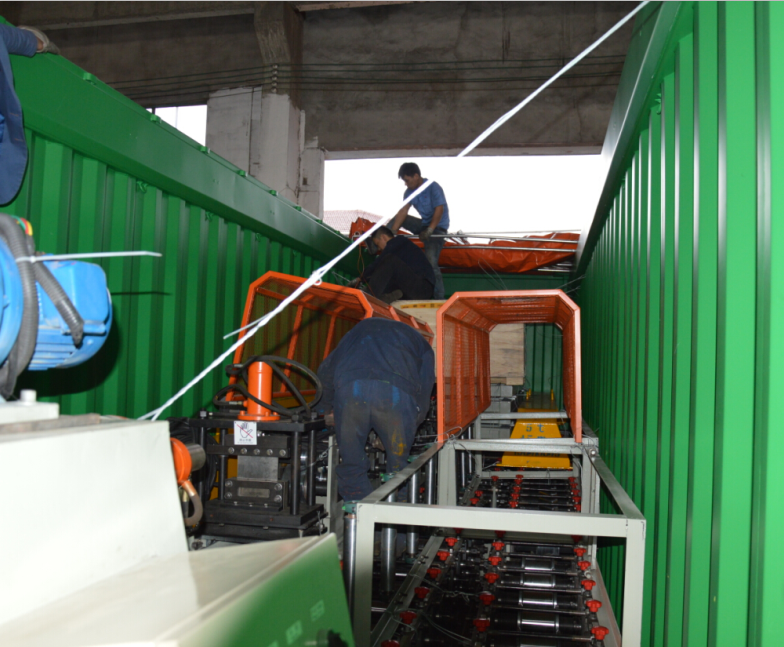

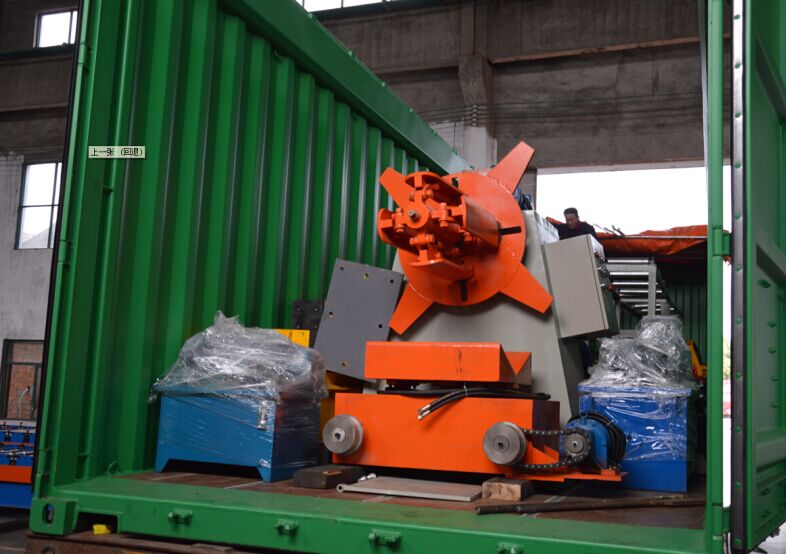

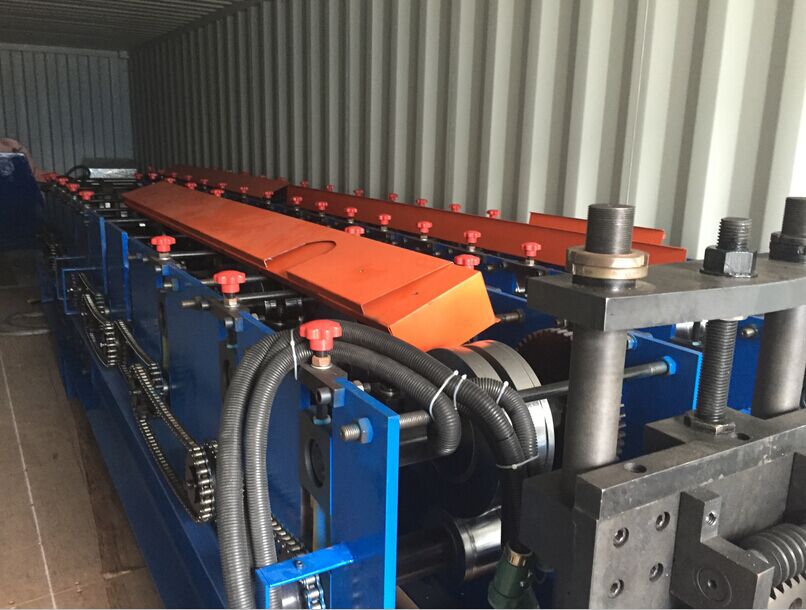

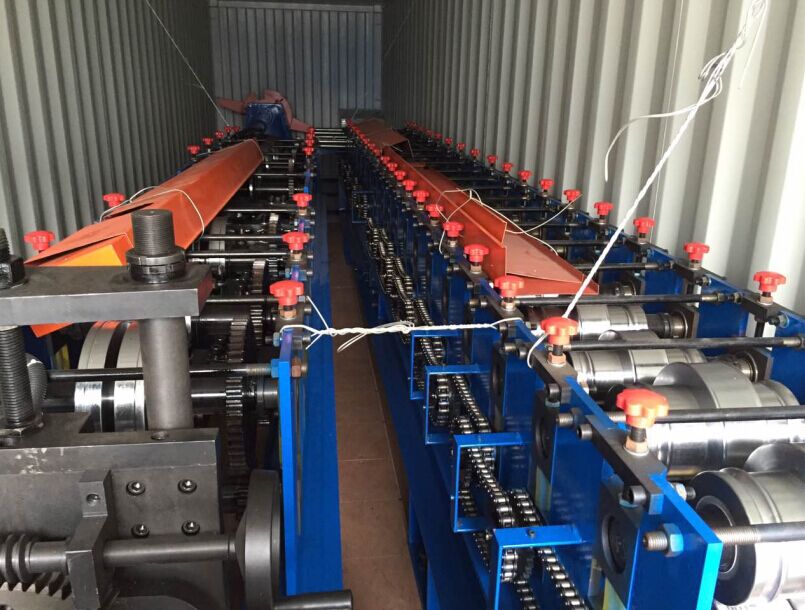

Loading Photo

Company Introduction

Sussman Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 80 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

After-sale Service

1. The warranty is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
